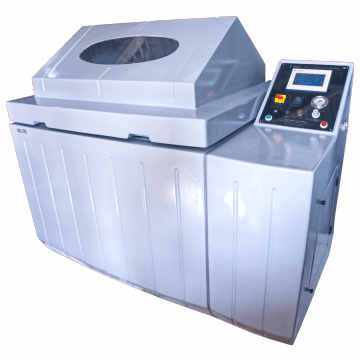

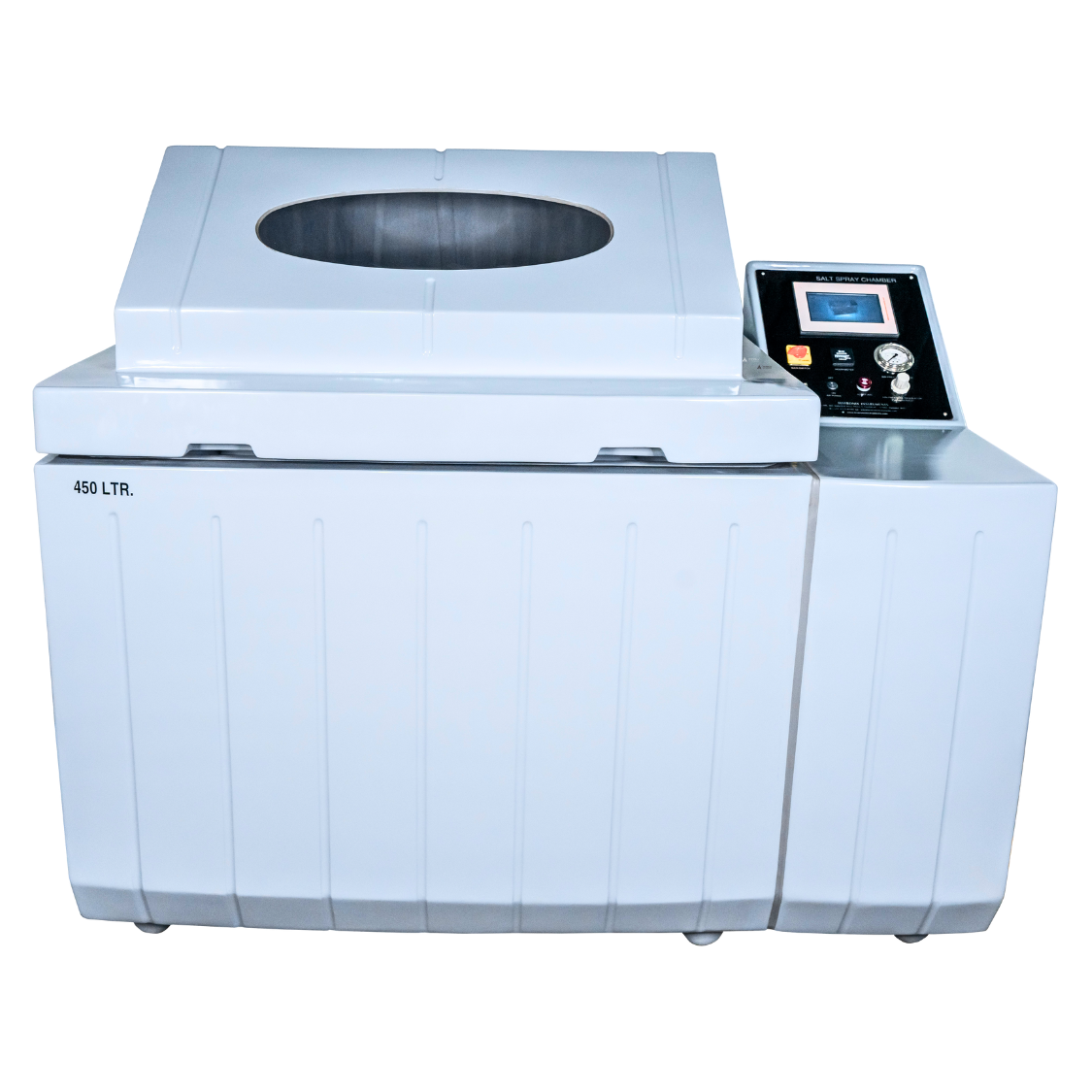

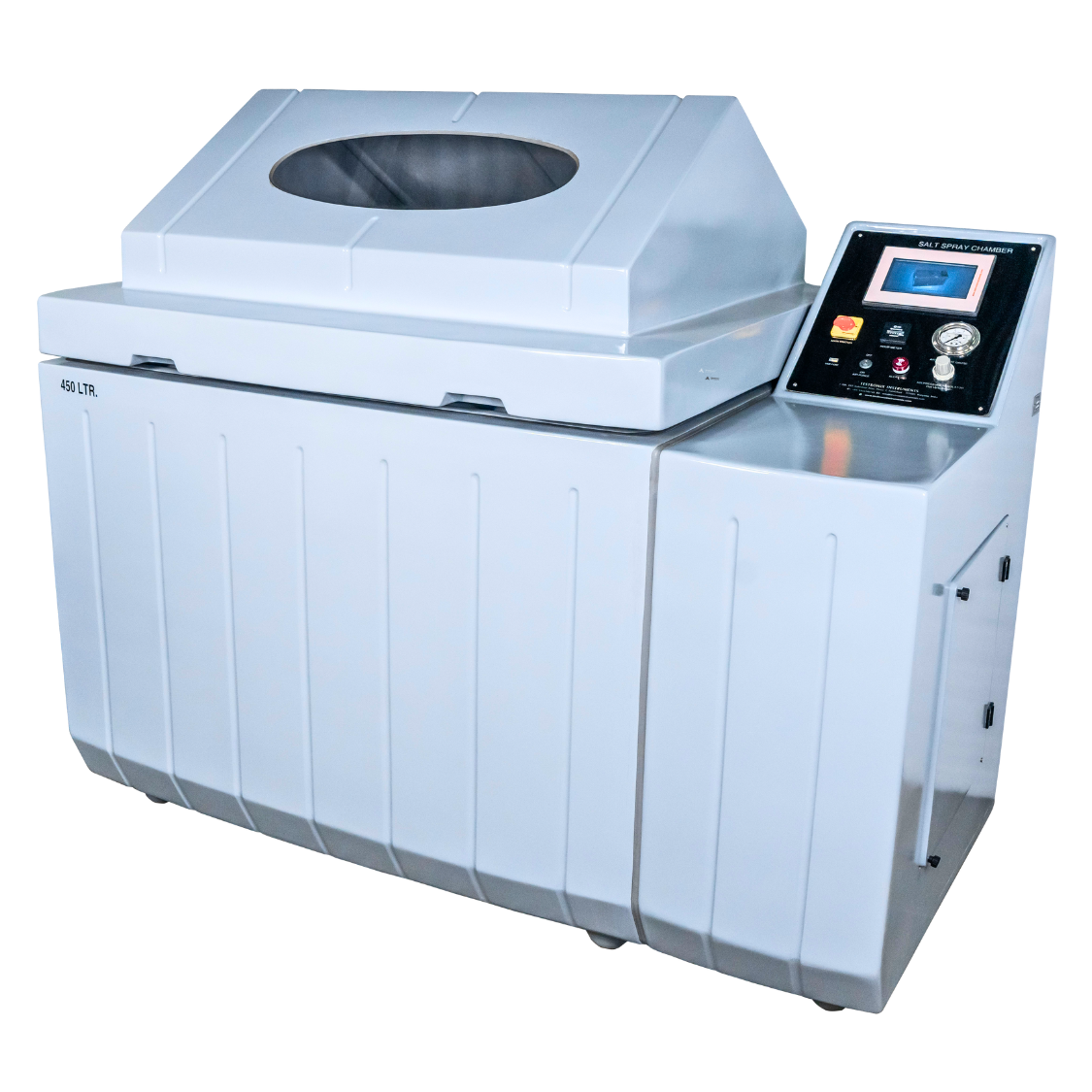

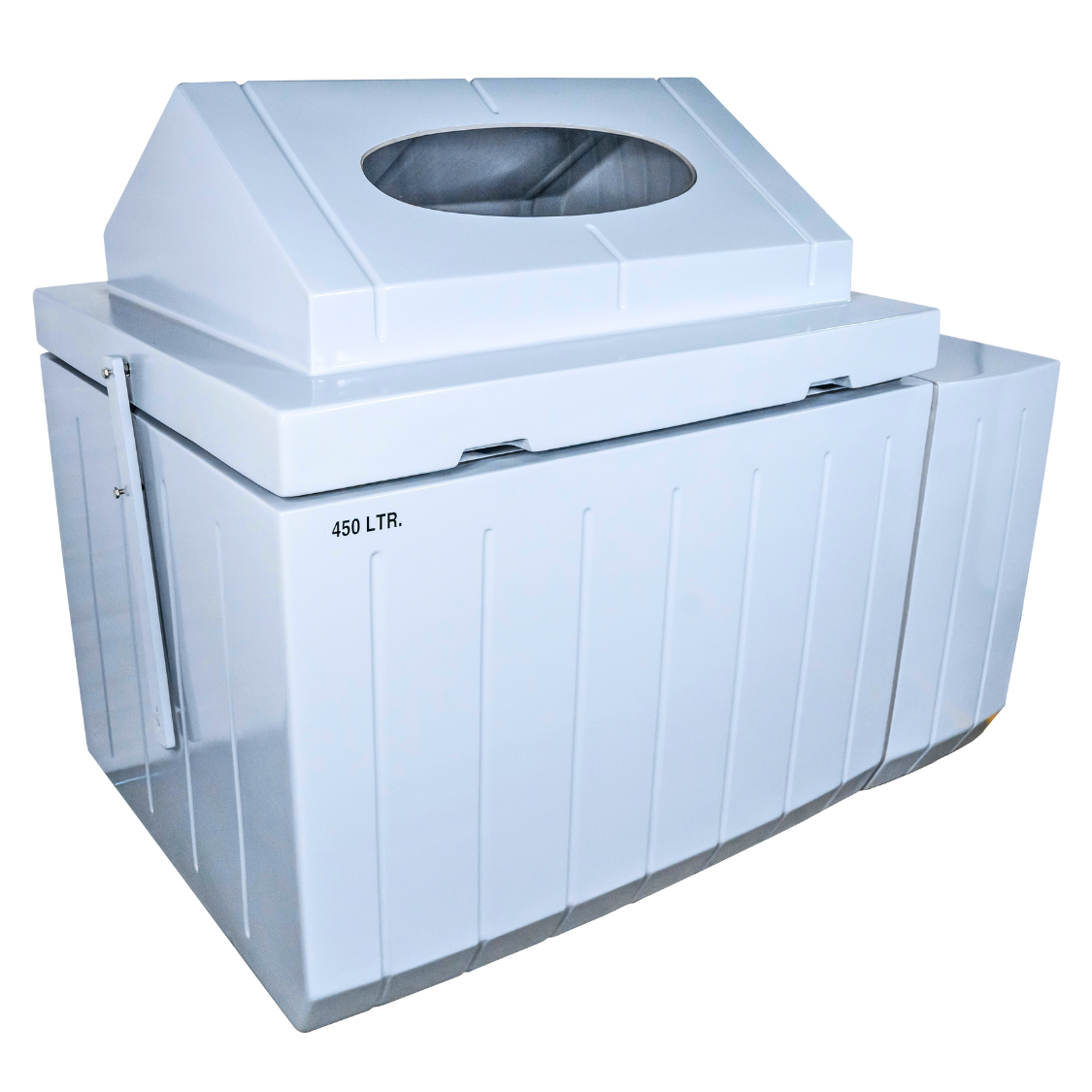

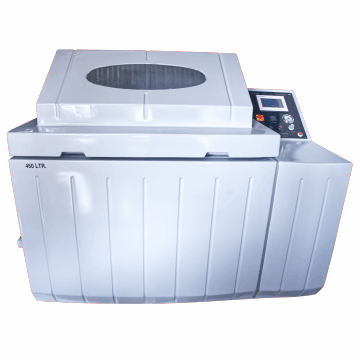

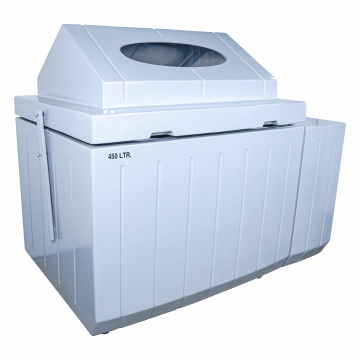

Salt Spray Chamber Touch screen




Salt Spray Chamber Touch screen

4.7 of 5      In Stock

Model No: TX-SST HMI

  • Brand:

  • Testronix Instruments

Salt spray chamber FRP (Fibre Reinforced Plastic) is the latest technology corrosion test chamber manufactured with high quality FRP (Fibre Reinforced Plastic) body. The instrument has a rugged body with compliance to ASTM B117 standards. The unique FRP body has resistance to high temperature and can withstand extreme corrosive environment. With the help of the latest technology FRP body the in


Need more information or have a question?

Contact Us

Salt spray chamber FRP (Fibre Reinforced Plastic) is the latest technology corrosion test chamber manufactured with high quality FRP (Fibre Reinforced Plastic) body. The instrument has a rugged body with compliance to ASTM B117 standards. The unique FRP body has resistance to high temperature and can withstand extreme corrosive environment. With the help of the latest technology FRP body the instrument has long running life and is capable for conducting the salt spray test for days. The salt spray chamber consists of an in built special reservoir (with float valve) which helps the user in identifying the fluctuation in water level. Salt spray chamber plays a pivotal role to test the specimen and analyse the quality of material being used by manufacturers. The touch screen model of the salt spray corrosion test chamber further provides the user with accurate reports and data test results. These test results are attained in the form of a graphical report. The HMI touch screen model also enhances the user experience and make the instrument easy to operate. The chamber body is highly insulated so as to protect the sample from unwanted dust particles and air. This ensure 100% compliance to ASTM B117 and ensure accuracy. The instrument is also complaint to IP65 which further enhances the life of the chamber body. Testronix also offers various unique features with its instrument. These are best in class top notch features which enhance the user experience and make the instrument easy to operate.

    • Inbuilt temperature settings

    • Air Purge and Auto Tuning Facility

    • Air Saturator Alarm and Auto-Refill facility for safety

    • Overshoot Temperature Alarm Warning System

    • Construction: FRP Material

    • Latest Technology Atomiser Timer

    • Chamber Canopy/ Hood Angle as per ASTM B117

    • Sample viewing window

    • Salt Spray Test feature to enable parameters according to test sample

    • Temperature and timer functions inbuilt to set all test parameters accurately

    • Robust Construction with FRP Body to withstand extreme temperatures and extreme corrosive environment

    • Inbuilt Temperature exceeds alarm Facility to ensure machine safety

    • Water low level indicator and in built alarm to guide the user

    • Less maintenance and easy to operate model

    • FRP Corrosion resistant body as per ASTM B117

    • Simple placement of samples

    • User can control PID settings through Advanced Hysteresis setting

    • Angle of Canopy maintained in order to restrict flow of droplets directly on the test sample as per ASTM B117 standards

    • Leak proof Hood and 100% insulation to provide accurate results

    • Pneumatic Hood (Optional Feature to provide user ease)

    • Inbuilt Air saturator and Fog Collection unit



    Features of Touch screen controller:

    • Microprocessor-based model with auto-tuning feature

    • Run time vs temperature graph on screen

    • Data recording with temperature data reading

    • USB and pen drive options are available to extra data easily

    • Option available to set PV and SV value

    • Knox system integrated for data security

    • User settings can be locked by admin panel and protected by password

    • User can control PID settings through Advanced setting

  • Test Chamber Temperature Range

     35°C

    Chamber Temperature Least Count

     0.1°C

    Chamber Temperature Repeatability

     Uniformity ±2°C

    Air Saturator Temperature Range

     Upto 50°C

    Air Saturator Temperature Least Count

    0.1°C

    Air Saturator Temperature Repeatability

    ±1°C

    pH value of Salt Solution

    6.5 to 7.2 pH

    In built PID temperature controller

    Yes

    Timer

     Upto 99999 Hours

    Test Air Pressure

    0.7 Kg/ cm²&   1.2 Kg/ cm²

    Air Regulator

     0 To 7 Kg/ cm²

    Air Purging Facility

    Yes

    Fog Collector

    Yes

    Fog Collection

    1-2ml per 80 cm² per hour as per standards

    Measuring Cylinder (External)

    Available (Capacity:50ml)

    Power

    220V, Single phase, 50 Hz, 15 A

    Reservoir Tank for Solution

    Yes Included



    Optional accessories:

    1. Air saturator- to saturate the air inside the chamber for compliance of ASTM B117

    2. Fog collection unit

    3. pH meter- to check the pH of salt solution

    4. pneumatic opening of canopy for ease in operation

    Inside Dimensions:

    L    x  B    x    H

    250 LTR

    800 x 500 x 500 mm

    450 LTR

    1000 x 700 x 750 mm

How Salt Spray Chamber Touch screen Works?

View this video to learn how this product works
