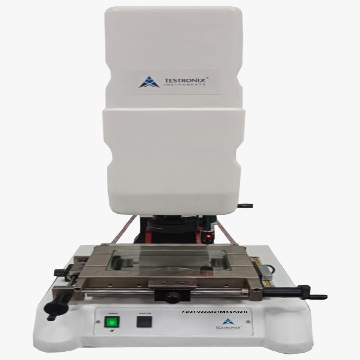

Vision Measurement System




Vision Measurement System

4.7 of 5      In Stock

Model No: TX-VMS

Elevate your quality control with the Testronix Vision Measurement System, a state-of-the-art solution for the preform and bottle manufacturing industry. Designed for precision and efficiency, this 2-dimensional vision measurement system ensures that every product meets the highest standards of quality and consistency.


Need more information or have a question?

Contact Us

Elevate your quality control with the Testronix Vision Measurement System, a state-of-the-art solution for the preform and bottle manufacturing industry. Designed for precision and efficiency, this 2-dimensional vision measurement system ensures that every product meets the highest standards of quality and consistency.

    • Standard and Optional Measuring Ranges:
      • The system offers a standard measuring range of 100mm x 100mm, with optional extensions up to 500mm on the X-axis and 400mm on the Y-axis, catering to various measurement needs.
    • High Precision Focusing:
      • With a focusing range of 100mm (without encoder), and resolutions of 0.005mm, 0.001mm, and 0.0005mm, the system guarantees precise measurements.
    • Superior Accuracy and Repeatability:
      • Achieve linear accuracy of (3+L/200) micron and repeatability of ±0.002mm, ensuring consistent and reliable results.
    • Advanced Vision System:
      • The 1/3" high-resolution CCD camera and optical magnification range from 0.7X to 4.5X provide clear and detailed images for accurate measurement.
    • Efficient Measurement Method:
      • Utilize the cross-hair on the screen for precise measurement and analysis.
    • Enhanced Illumination:
      • Choose between fiber optic or LED surface illumination and halogen lamp or LED contour illumination for optimal visibility.
    • User-Friendly Operation:
      • The manual operation with a quick-release knob and optional joystick control simplifies usage and increases efficiency.
    • Robust Design:
      • A metal base platform and column, along with a platform load capacity of 10kg, ensure durability and stability.
    • Versatile Power Supply:
      • Compatible with 220-240V ± 5%, 50/60Hz power supply, making it suitable for various settings.
    • Optional Upgrades:
      • Enhance your system with optional PC and 19" monitor, binocular or trinocular observation head, and focusing slide.

  • Specification

    Details

    Measuring Range (Standard)

    100mm x 100mm

    Optional Range

    X-axis up to 500mm, Y-axis up to 400mm

    Focusing Range

    100mm (without encoder)

    Resolution

    0.005 / 0.001 / 0.0005mm

    Linear Accuracy

    (3+L/200) micron

    Repeatability

    ±(0.002mm)

    Vision System

    1/3" High Resolution CCD Camera

    Magnification

    Optical Magnification 0.7X - 4.5X

    Measurement Method

    Cross-hair on screen

    Optional Hardware

    PC with 19" Monitor

    Illumination Surface

    Fiber Optic/LED

    Illumination Contour

    Halogen Lamp/LED

    Operation

    Manual with quick-release knob
