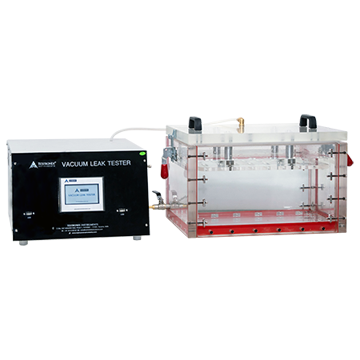

Model No: TX - VLT PTS
Testing the vacuum of different packaging materials like pouches & PET bottles is an important part of quality control. Thus, we at Testronix have designed a high-quality lab testing instrument known as a vacuum leak tester panorama touchscreen model. This is one of the high-quality lab testing equipment that comes with an HMI touch screen with fully automatic controls so that one can ensur
Need more information or have a question?
Testing the vacuum of different packaging materials like pouches & PET bottles is an important part of quality control. Thus, we at Testronix have designed a high-quality lab testing instrument known as a vacuum leak tester panorama touchscreen model. This is one of the high-quality lab testing equipment that comes with an HMI touch screen with fully automatic controls so that one can ensure accuracy in test results.
This panorama touchscreen model of vacuum leak tester has been made as per industry standards including ASTM D 4991-07(2015), ASTM F 2338-09(2013), ASTM D6653, ASTM D3078 and ASTM D5094. This will ensure accuracy in test results. Different tests can be conducted with the help of this quality testing equipment that includes bubble emission test, dry chamber test, and high altitude test.
This vacuum leak testing equipment comes with microprocessor-based controls for the repeatability and accuracy of test results. Besides this, it meets USP 28 packaging practice specifications.
HMI-based Touchscreen Model
Microprocessor-based controls for repeatability and accuracy
Meets USP 28 packaging practice specification
Air & Water both can be used as a testing medium
Automatic sample testing through an easy vacuum mechanism
Pass/ Fail criteria can be programmed.
Changeable timer units in Hrs.: Min: Sec
Inbuilt calibration facility
Vacuum Pressure display incorporated in HMI for easy pressure monitoring
Program profile for selecting test parameters and performing the test.
East data management. Users can create product identification, user name, vacuum hold time, set pressure, etc.
Graph of Pressure vs. Time
USB option available for storing test data and graph
Print report with graph
Data output in graphical and data record format.
History data involves username, time, date, vacuum hold time, etc.
Display: HMI Touch Screen
Least Count: 1.0 mm Hg
Accuracy: 0.5% of the measure
Power: 220 V, Single Phase, 50 Hz
Controls: Pressure Monitoring and Timer Integrated into HMI
Timer: Up to 999 Seconds (Changeable to Hours: Min: Sec)
Material: Mild Steel duly powder coated
Vacuum adjustable up to – 800 MB (-600 mm-Hg.)
Box made of polished transparent PMMA (very rugged)
2-stage vacuum and holding time setting
Delivered with vacuum generator
