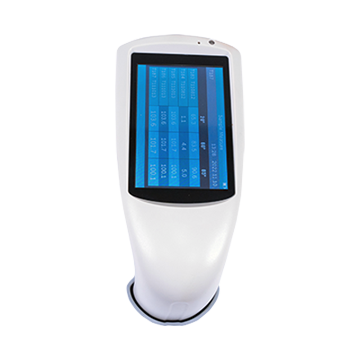

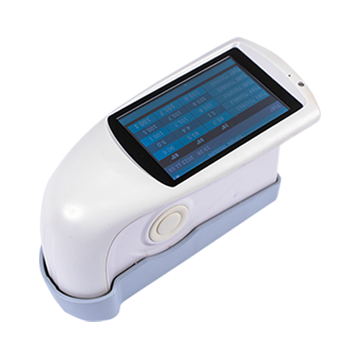

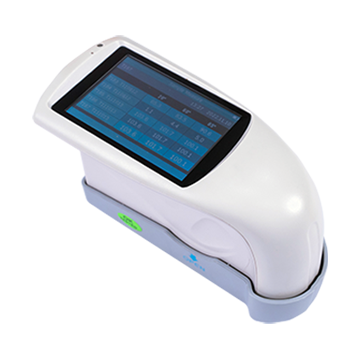

Gloss Meter




Gloss Meter

4.7 of 5      In Stock

Model No: TX- GM100

  • Brand:

  • Testronix Instruments

Gloss Meter Tri-angle is a device which is designed specially to measure the gloss reflection on the surface of the material. The instrument is provided with numerous geometrical angles to fulfill the testing need of a vast number of customers. The device is designed specifically to measure the gloss of a particular surface and to ascertain the amount of light which is redirected from the mater


Need more information or have a question?

Contact Us

Gloss Meter Tri-angle is a device which is designed specially to measure the gloss reflection on the surface of the material. The instrument is provided with numerous geometrical angles to fulfill the testing need of a vast number of customers. The device is designed specifically to measure the gloss of a particular surface and to ascertain the amount of light which is redirected from the material.



It is an extremely appropriate testing device to test the gloss of different products such as plastics, metals, paints, papers and ceramics. It is very portable and handy testing device which is operated by a handy battery. The gloss of the material can be measured from different geometrical angles i.e. 20°, 60°, 85°. It is highly sensitive and compact device which is available in various models mainly to fulfill different testing purposes. The instrument is used to measure the brightness, whiteness of the various products such as white sugar and many more and also measure the reflectance of the fabrics when placed in different lighting conditions. It provides great correlation of shining or visual gloss when the sample is placed flat.



The correlation of the glass changes if the sample is tilted from the flat position. The procedure is used to measure the shine, appearance, and quality of the products.



The instrument is more suitable to measure the gloss of paints, brightness of paints, opaque glasses, plastics, ceramics, pigments, papers, powders, clothes and many more.



Related Standards ASTM D2457, ASTM D523, ISO2813, GB/T 9754.



Testronix Instruments is a leading manufacturer and supplier of gloss meter in India. For the best price, contact us for a quote or call now!

    • Measurements of the device are done on the basis of the standards JJG696. The standard fulfills the working requirement of Gloss Meter.
    • The chromaticity of the instrument is correspondent to the CIE 1931(2°) which is done under CIEC light source.
    • Some Standard Accessories are also delivered with the device which makes the working of theinstrument easily. The accessories are: Power Adapter, User Manual, USB cable, Calibration Plate, and software CD (except basic model) The Device with different geometry degree measurements is also available on customer’s demand.

    • It measures 5x36mm area of the sample from 85-degree angle, 9x15mm area at 60-degree angle and 10x10m m area from 20-degree angle.
    • The instrument offers the division value of 0.1 GU.
    • It provides a measuring range of 0~1000GU from 20 degree, 0~1000GU from 60 degree, 0~160GU from 85 degree.
    • The instrument offers different measurement units i.e.
    • Range : – 100-1000GU, 10-100GU, 0-10GU.
    • Reproducibility : – ± 0.5%GU, ± 0.5GU, ± 0.2GU
    • Repeatability : – ± 0.2%GU, ± 0.2GU, ± 0.1GU

How Gloss Meter Works?

View this video to learn how this product works

Have a Question?

Connect with our customer support manager to get the product details & Quote.

Please fill this form to request a call-back from our
customer support manager with pricing and details.

We will also send you our product PDF for your reference.

Word of Testimony

What our customer says about us is important to us.

We want to thank your team for such prompt support. Your instruments are very durable. We are impressed with the design engineering. All the products are very easy to operate. The guidance provided by your team is highly appreciated. We look forward to working with an organisation like yours

Manish Aggarwal

Testronix has set up our new lab in all our plants throughout india. They provide value for money and very affordable testing instruments. Their team is highly trained and has good technical knowledge about the products.

Karan Singh

Trusted by market leaders —

FAQ's

Q. What industries can benefit from using gloss meters?

Gloss meter is one of the high-quality lab testing instruments used in various industries, including automotive, coatings, plastics, printing, packaging, and more, where surface appearance and quality are crucial. It is an extremely appropriate testing device to test the gloss of different products such as plastics, metals, paints, papers and ceramics. It is a very portable and handy testing device which is operated by a handy battery.

Q. Can it measure gloss from different geometrical angles?

Yes, this testing instrument can measure gloss from various geometrical angles, including 20°, 60°, and 85°, providing flexibility in gloss measurement.

Q. What is the typical maintenance required for gloss meters?

Regular maintenance includes keeping the instrument clean, ensuring the light source and detectors are in good condition, and recalibrating periodically to maintain accuracy.

Q. How do I calibrate a gloss meter?

Gloss meters often come with a calibration standard. The instrument has an auto-calibrating function. But for flexible use, it has an optional feature to check whether it will auto-calibrate at startup. If the last power-off is done manually, it will calibrate automatically when turned on next time.

Q. Where can I purchase gloss meters or get technical support?

You can purchase gloss meters directly by contacting us at +91 9313 140 140 or emailing us at info@testronixinstruments.com. Our team of technical experts will easily assist you regarding all your needs and queries.
