Model No: TX-BST 500

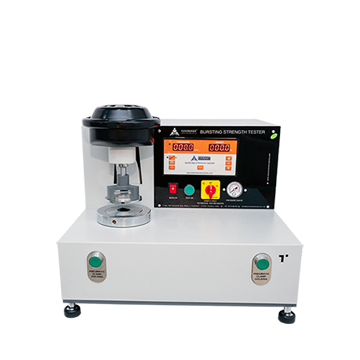

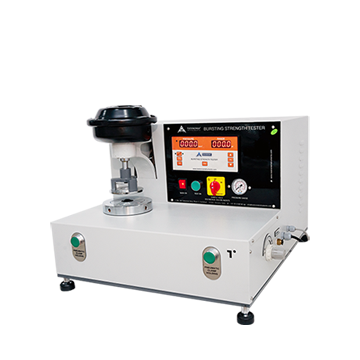

The bursting strength tester computer is manufactured by Testronix is one of the most popular instruments in the paper and packaging industry. Corrugated box manufacturers can use busting strength tester to calculate the busting factor. The computerised model of the bursting strength tester helps in providing the user with computerised test reports. There is an option to calculate the g
Need more information or have a question?
The bursting strength tester computer is manufactured by Testronix is one of the most popular instruments in the paper and packaging industry. Corrugated box manufacturers can use busting strength tester to calculate the busting factor. The computerised model of the bursting strength tester helps in providing the user with computerised test reports.
There is an option to calculate the graphical test reports. The bursting strength tester computerised has an inbuilt software facility. The instrument consists of a dual synchronisation feature wherein bursting strength of both paper and corrugated box can be calculated on one head. The bursting strength tester instrument has a digital display and helps in calculation of accurate busting strength/ bursting factor. The bursting strength tester computerised manufactured by Testronix is a highly accurate, precise and robust instrument.
The bursting factor can be calculated by the following formula
Bursting factor = bursting strength / Grammage
Applications:
Test Standards: ASTM D 3786-01, ASTM D 3786 – 80A, ISO 1060 PART-1 1987.
Available models: Bursting strength tester Analogue Bursting strength tester Pneumatic model, Bursting strength tester computerized model with thermal printer connectivity
Key Specifications:
|
Capacity |
0 – 40 kg/cm² |
|
Display |
Digital LED display |
|
Accuracy |
± 1% within 10% to 90% of entire range as per IS:1828 with master gauge. |
|
Least Count/Resolution |
0.1 kg/cm2 |
|
Power |
220V, Single phase, 50 Hz |
|
Test fluid |
Glycerin about 98% purified |
|
Rate of fluid displacement |
95 cc/minute |
|
Motor |
1/4 HP Single Phase , 1440 rpm |
|
Material |
Mild steel, powder coated |
|
Dimensions |
540x 600x 450 mm |
View this video to learn how this product works
