Model No: TX-BST 300

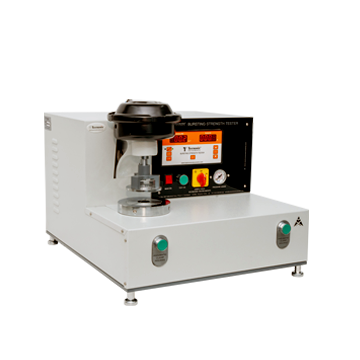

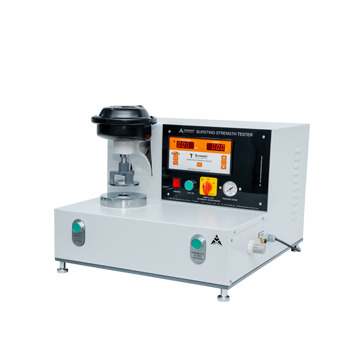

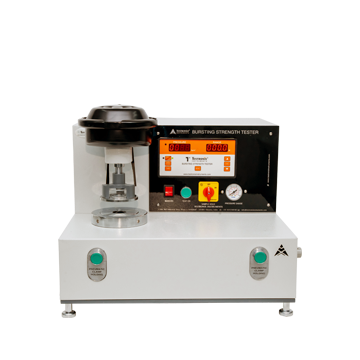

Bursting Strength Tester Pneumatic is the most accurate instrument. The operation takes place with the help of a compressed air line/ hydraulic mechanism. The gauge of the instrument gets compressed pneumatically hence making the operation even easier. The pneumatic model provides the user with 100% accurate results. It also has an optional feature of a computer connectivity which helps in prov
Need more information or have a question?
Bursting Strength Tester Pneumatic is the most accurate instrument. The operation takes place with the help of a compressed air line/ hydraulic mechanism. The gauge of the instrument gets compressed pneumatically hence making the operation even easier. The pneumatic model provides the user with 100% accurate results. It also has an optional feature of a computer connectivity which helps in providing the user with graphical reports with pass/ fail criteria.
The gauge in the pneumatic model hence is tightened automatically. This class apart feature offered by testronix makes the instrument unique. The instrument consists of a lab grade diaphragm as per standard.
• Paper boards
• Corrugated boards and boxes
• Industrial fabric and solid fibre boards
• Filter cloth plastic films
• Foils
• Sheets
Test Standards: ASTM D 3786-01, ASTM D 3786 – 80A, ISO 1060 PART-1 1987.
Available models: Bursting strength tester Analogue, Bursting strength tester, Bursting strength tester computerised model with thermal printer connectivity
|
Capacity |
0 – 40 kg/cm² |
|
Display |
Digital LED |
|
Accuracy |
± 1% within 10% to 90% of entire range as per IS:1828 with master gauge. |
|
Least Count/Resolution |
0.1 Kg/cm2 |
|
Power |
220V, Single phase, 50 Hz |
|
Test fluid |
Glycerin about 98% purified |
|
Rate of fluid displacement |
95 cc/minute |
|
Motor |
1/4 HP Single Phase , 1440 rpm |
|
Material |
Mild steel, powder coated |
|
Clamping |
Pneumatic/ Hydraulic |
|
Dimensions |
540x 600x 450 mm |
View this video to learn how this product works
Connect with our customer support manager to get the product details & Quote.
What our customer says about us is important to us.
Testronix has set up our new lab in all our plants throughout india. They provide value for money and very affordable testing instruments. Their team is highly trained and has good technical knowledge about the products.
Karan Singh
I have purchased all packaging testing instruments from testronix for our lab. Testronix has supported us throughout. They have trained and very supportive staff. Testronix is highly reliable and is a highly recommended brand for lab testing machines
Vikram Singh
The Bursting strength tester pneumatic is an automatic clamping model of the bursting strength tester which helps corrugated box manufacturers in calculating the Bursting strength and bursting factor of corrugated boxes. The instrument is one of the most accurate machines in the paper and packaging testing industry
Blasting Strength Tester Pneumatic is the most dependable instrument. The instrument calculates the BS and BF with the help of pneumatical operation, making the activity much simpler. The pneumatic model provides the user with 100 percent accurate test results. It is hence a very accurate and precise mode
The price of Bursting strength tester pnuematic can differ depending on the model and instrument. You may find the same product in different price ranges in the market. Most of the cheap products come from unbranded manufacturers/traders with no guarantee while the branded products of reputed manufacturers maintain high quality and come with a branded spares parts
You need to find a renowned manufacturer to buy a genuine bursting strength tester There are several traders in the market, but not everyone is a genuine manufacturer and can provide you with authentic and high-quality products. For that reason, you need to check if they have their own manufacturing unit and dedicated service set up. Customers must always check if the manufacturer has a dedicated and reliable in-house service set up.
To get a free price quotation for bursting strength tester you can contact the company with your requirement, details from their mail id and phone number. To get a quotation from Testronix Instruments fill the form with requirements and you will get an instant call-back from the sales for the techno-commercial offer. You can connect with us anytime at +91 9313 140 140 or info@testronixinstruments.com
