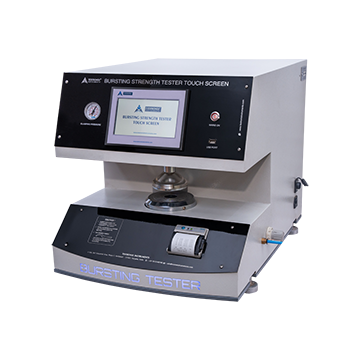

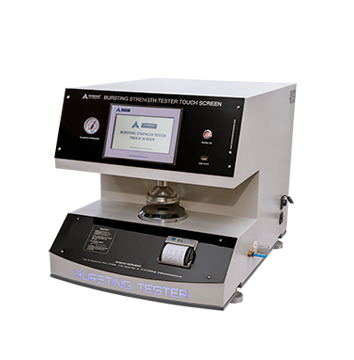

Bursting Strength Tester - Panorama Touch Screen

4.7 of 5 In Stock

Model No: 0

Need more information or have a question?

Contact Us

Bursting strength tester fully automatic is the most accurate instrument. The operation takes place with the help of a compressed air line mechanism. The gauge of the instrument gets compressed pneumatically hence making the operation even easier. The pneumatic model provides the user with 100% accurate results. It also has an optional feature of a computer connectivity which helps in providing the user with graphical reports with pass/ fail criteria. The gauge in the pneumatic model hence is tightened automatically. This class apart feature offered by testronix makes the instrument unique. The instrument consists of a lab grade diaphragm as per standard.

Applications:

Paper boards
Corrugated boards and boxes Industrial fabric and solid fibre boards Filter cloth plastic films
Foils Sheets

Test Standards: ASTM D 3786-01, ASTM D 3786 – 80A, ISO 1060 PART-1 1987.
Available models: Bursting strength tester Analogue, Bursting strength tester Bursting strength tester computerised model with thermal printer connectivity

Features:
- Push Button Operation
- Results also Displayed in Mpa,Kg/cm2 & Psi
- Microprocessor based display for accurate test results
- Peak Hold facility for keeping maximum value of test result in memory Memory to hold up to 9 test reading
- Highly accurate test results under multidirectional Force Digital screen for accurate results
- Strong Gripping clamps Grooved structure of Test Specimen Holder to provide firm grip Firm grip of specimen if the
  operating wheel is tightened uniformly
- Pneumatic/ Hydraulic clamping
- Available in computerised model with thermal print facility Available in 0 – 60 kg/cm² on request
- Pressure transducer model for accurate results
Additional Features of Touch Screen Model

Fully automatic 1-push button operation
- Single Test start operation to perform full test cycle automatically. Single touch test start for clapming and testing (All in one) Microprocessor based display with in built drive
- Single push for auto clamp and burst Hands free easy operation Graphic reports on digital display
- Pass and fail report system on digital display
- PC connection with Ethernet Facility
- Safety cut off and Alarm for High Pressure
- Historical Data with Audit Trail Page
- Automatic BF calculation in built
- 7inch Touch screen display with bright graphics
- In built thermal printer system
- Pass/Fail reporting in built
- In built sensor and auto calculator for Bursting strength and bursting factor Bar graph display and memory holding feature for sample testing

Capacity	0 – 40 kg/cm²
Display	Touch Screen Display
Accuracy	± 1% within 10% to 90% of entire range as per IS:1828 with master gauge.
Least Count/Resolution	0.1Kg/cm2
Power	220V, Single phase, 50 Hz
Test fluid	Glycerin about 98% purified
Rate of fluid displacement	95 cc/minute
Motor	1/4 HP Single Phase, 1440 rpm
Material	Mild steel, powder coated
Dimensions	475x 650x 480 mm

★ ★★ ★★★ ★★★★ ★★★★★
