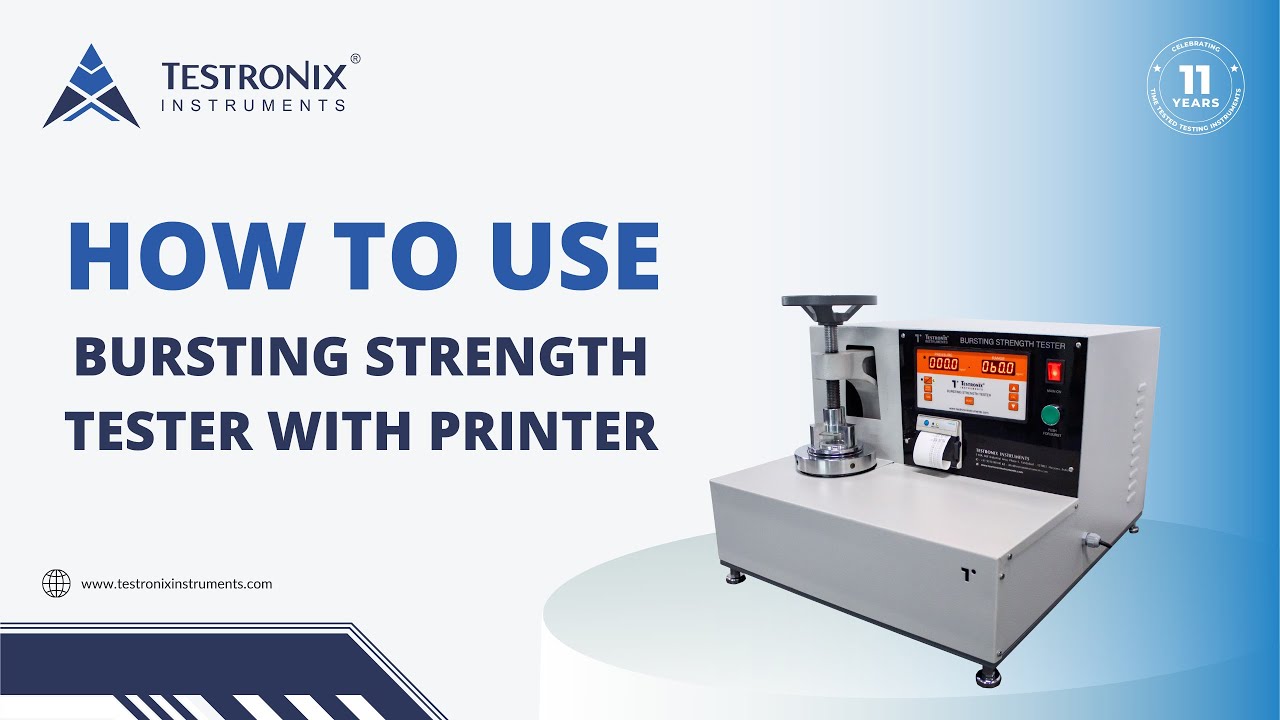

Bursting strength tester with thermal printer

Description

The bursting strength tester manufactured by Testronix also has an option of thermal printer This inbuilt thermal printer helps in providing the user with accurate busting factor values or busting strength values. This is an attached thermal printer with the instrument. Once the user has completed the bursting strength test on the instrument, the user can get a printout of the readings with the help of one push button facility. This unique feature offered by Testronix has helped many users in calculating the accurate busting factor. The instrument also consist of a digital LED display with an option of peak and tear facility.

The bursting factor can be calculated by the following formula

Bursting factor = bursting strength / Grammage

Applications:

Paper boards
Corrugated boards and boxes
Industrial fabric and solid fibre boards
Filter cloth plastic films
Foils
Sheets

Test Standards: ASTM D 3786-01, ASTM D 3786 – 80A, ISO 1060 PART-1 1987.

Available models: Bursting strength tester Analogue Bursting strength tester Pneumatic model, Bursting strength tester computerized model with thermal printer connectivity

Features

Push Button Operation
Thermal printer inbuilt to provide accurate resports
Microprocessor based display for accurate test results
Peak Hold facility for keeping maximum value of test result in memory
Memory to hold up to 9 test reading
Highly accurate test results under multidirectional Force
Digital screen for accurate results
Strong Gripping clamps
Grooved structure of Test Specimen Holder to provide firm grip
Firm grip of specimen if the operating wheel is tightened uniformly
Pressure transducer model for accurate results

Specifications

Key Specifications:

Capacity	0 – 40 kg/cm²
Display	Digital LED display
Accuracy	± 1% within 10% to 90% of entire range as per IS:1828 with master gauge.
Least Count/Resolution	0.1 kg/cm2
