Bursting Strength Analogue




Bursting Strength Analogue

4.7 of 5

Model No: TX-BST 100

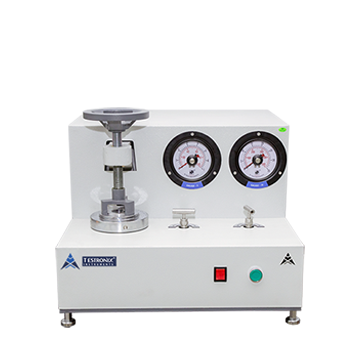

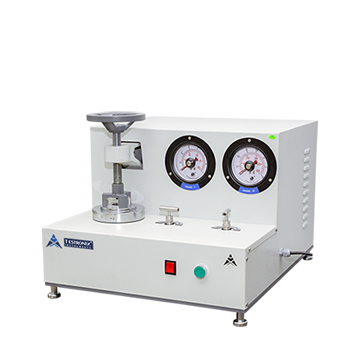

Bursting Strength Tester analogue model is a dial type model. It is a very accurate instrument for the measurement of Strength and performance of materials. It helps the user in calculating the bursting factor of corrugated boxes
Bursting Strength calculates the force required to rupture the material under testing. Bursting strength of test specimen is expressed in terms of Kg/cm²


Need more information or have a question?

Contact Us

Bursting Strength Tester analogue model is a dial type model. It is a very accurate instrument for the measurement of Strength and performance of materials. It helps the user in calculating the bursting factor of corrugated boxes
Bursting Strength calculates the force required to rupture the material under testing. Bursting strength of test specimen is expressed in terms of Kg/cm². It is measured by giving hydraulic pressure through a rubber diaphragm on the test specimen.

Applications:
•    Paper boards
•    Corrugated boards and boxes
•    Industrial fabric and solid fiber boards
•    Filter cloth plastic films
•    Foils
•    Sheets

Test Standards: ASTM D 3786-01, ASTM D 3786 – 80A, ISO 1060 PART-1 1987.

Available models: Bursting strength tester digital, Bursting strength tester Digital Pneumatic


    • Push Button Operation
    • Highly accurate test results
    • Strong Gripping clamps
    • Firm grip of specimen of the operating wheel


  • Capacity

    0 – 7 kg/cm² and 0 – 35 kg/cm²

    display

    analogue

    accuracy

    ± 1% within 10% to 90% of entire range as per IS: 1828 with master gauge.

    Least Count/Resolution

    0.2 Kg/cm2 for Gauge I 1.0 kg/cm2 for Gauge II

    Power

    220V, Single phase, 50 Hz

    Test fluid

    Glycerin about 98% purified

    Rate of fluid displacement

    95 cc/minute

    Motor

    1/4 HP Single Phase , 1440 rpm

    Material

    Mild steel, powder coated

    Dimensions

    540x 600x 450 mm

I happened to use the bursting strength tester analogue model. It is accurate instrument, performance-wise and tests well the many types of materials including paper, corrugated boards and boxes. In fact, I used it to test industrial fabric and leather and got quality results. I applied an increasing rate through a rubber diaphragm that ruptured the fabric and calculated the value of bursting strength easily. No issues in operations at all!

Hardik Sah

How Bursting Strength Analogue Works?

View this video to learn how this product works
