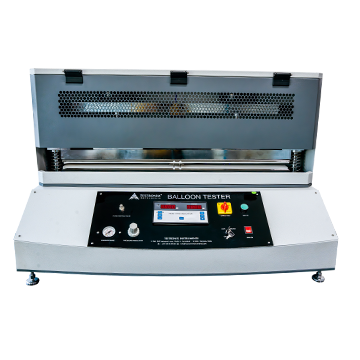

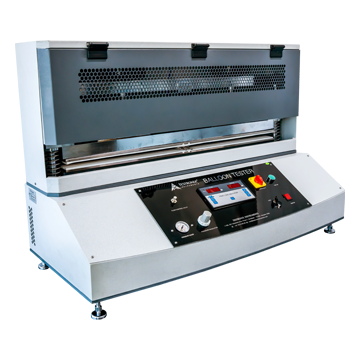

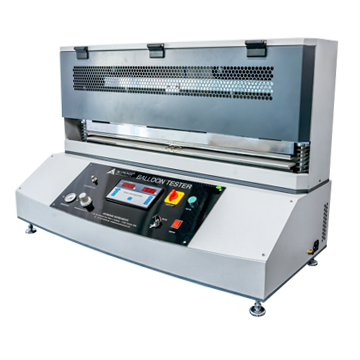

Balloon Burst Tester Price and Specification

Description

The balloon burst tester is an essential instrument which is used in the flexible packaging hits till plastic paper Bag industry. The balloon burst tester is a highly accurate instrument which helps in checking the quality and integrity of tubes and flexible pouch material. During the test air is filled inside the plastic or paper pouch and hence pressure is created inside the pouch. The test helps in calculating the pressurise burst of the specimen. The instrument also consist of two sets of straight and firm holding jaws to hold a specimen tight.

Basic pressure is exerted by the jaws which are equipped with small hair nozzles that helps fill the air inside the specimen. The highly accurate pressure sensor records the increasing level of pressure in the sample. Hence the peak value is saved and displayed on the digital read out. The balloon burst tester manufactured by Testronix is a highly accurate instrument which is designed as per international standards it is an easy to operate instrument and is designed by highly qualified and experienced team of design engineers

Features

In the built pressure control system
Mild Steel Powder coated body
Peak and Tare value calculation
Calibration lock and key feature
Auto clamping feature
Rigid clamps to ensure zero slippage
Inbuilt memory to log up to 9 test values
One-touch operation for easy functionality
Feather touch control button for smooth operation

Specifications

Capacity : 10 kg/cm²
Specimen Clamping: Pneumatic
Least Count/Resolution : 0.01Kg/cm2
Display: LED (Digital)
Accuracy: ± 1% within 10% to 90% of the entire range as per IS: 1828 with the master gauge
Clamp Area : 500mm width
Nozzle Diameter: 6.5 outer, 4.1 inner
Pressure Sensor: Pressure Transducer
Power: 220V, Single phase, 50 Hz
Upper & lower jaw gap: 40mm
Test Range : 21Kg / cm to 38 Kg / cm2
